4K H.264/H.265 Network Video Decoder

An advance Full 4K HDR Network IP Video Decoder fully support multiple streaming protocol decoding, plus latest inclusion of Secure Reliable Transport protocol (SRT) and Network Device Interface (NDI®), VidTech ND200PD enable reliable video contribution and distribution decoding over unmanaged Internet network.

Bundle with LabelCloud or VTCloud Live low latency media server, it is used for applications like broadcast IP video decoding, IPTV, eSport, house of worship, digital signage, webinars, and other video streaming applications.

Label Broadcast VTB ND200PD We are part of SRT Alliance

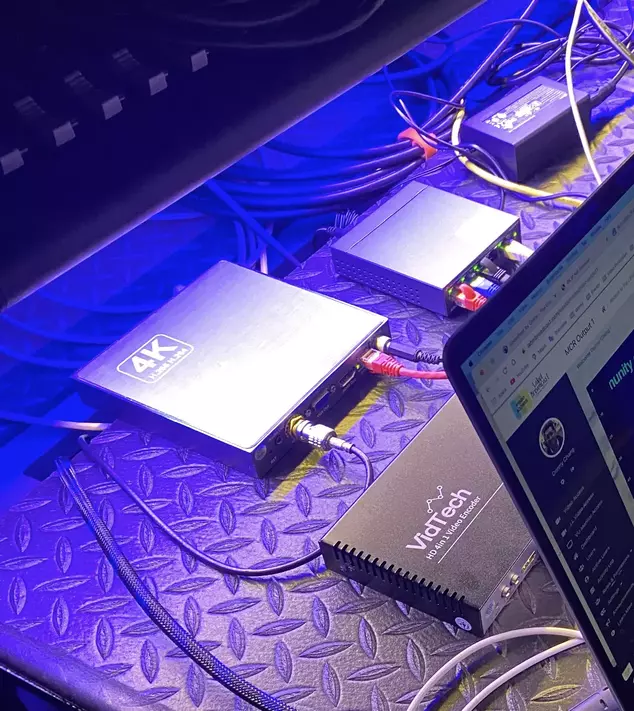

Label Broadcast VidTech equipment in action

Size Matter

Pocket Size Streaming Decoder

Amazingly VidTech Network Decoders are about the size of an adult's palm, so it is always easy to deploy them for any job without worrying excess weight and space. Ideal to stove them behind big TV or monitor screen to display incoming IP feed for broadcast viewing. Furthermore, they are also perfect for desk top applications like software mixer or switcher as live video source for content to social media.

  • Rugged Desktop Design
  • High Quality Metallic Finish
  • Minimal Light Weight Design

Hardware Based SoC System

Energy efficient System-on-Chip (S0C) chipset design which automatically compute the required hardware acceleration (such feature is normally not present in software decoder) result in faster video rendering for 1 to 4 video outputs.

AVC / HEVC compression

Conform to industry compression standard using MPEG4/H.264 AVC and H.265 HEVC up to 2160p30 in Interlace or Progressive format. You will be pleased to get 4K quality video with a cost effective budget.

User Friendly Interface

Simple Web User Interface (WebGUI) that support remote control management. A single operator can easily configure and manage the decoder anywhere with internet access, result in better resource planning and manpower saving.

Distribution

Support wide range of open source internet protocols such as SRT, RTMP(S), MPEG-TS, FLV, RTSP, HLS, RTP/UDP Multicast/Unicast, NDI®

SRT Ready

Label Broadcast is an official VidTech partner and a current member of SRT Alliance since 2021, we support Secure Reliable Transport (SRT) protocol in our VidTech standard workflow. This allows us to encrypt signal and ensure better packet recovery occurred in the internet video contribution process.

Bundle with our 4G/5G network bonding router and LabelCloud relay server, we could yield pristine quality in video transmission over the unmanaged internet for our esteemed clients.

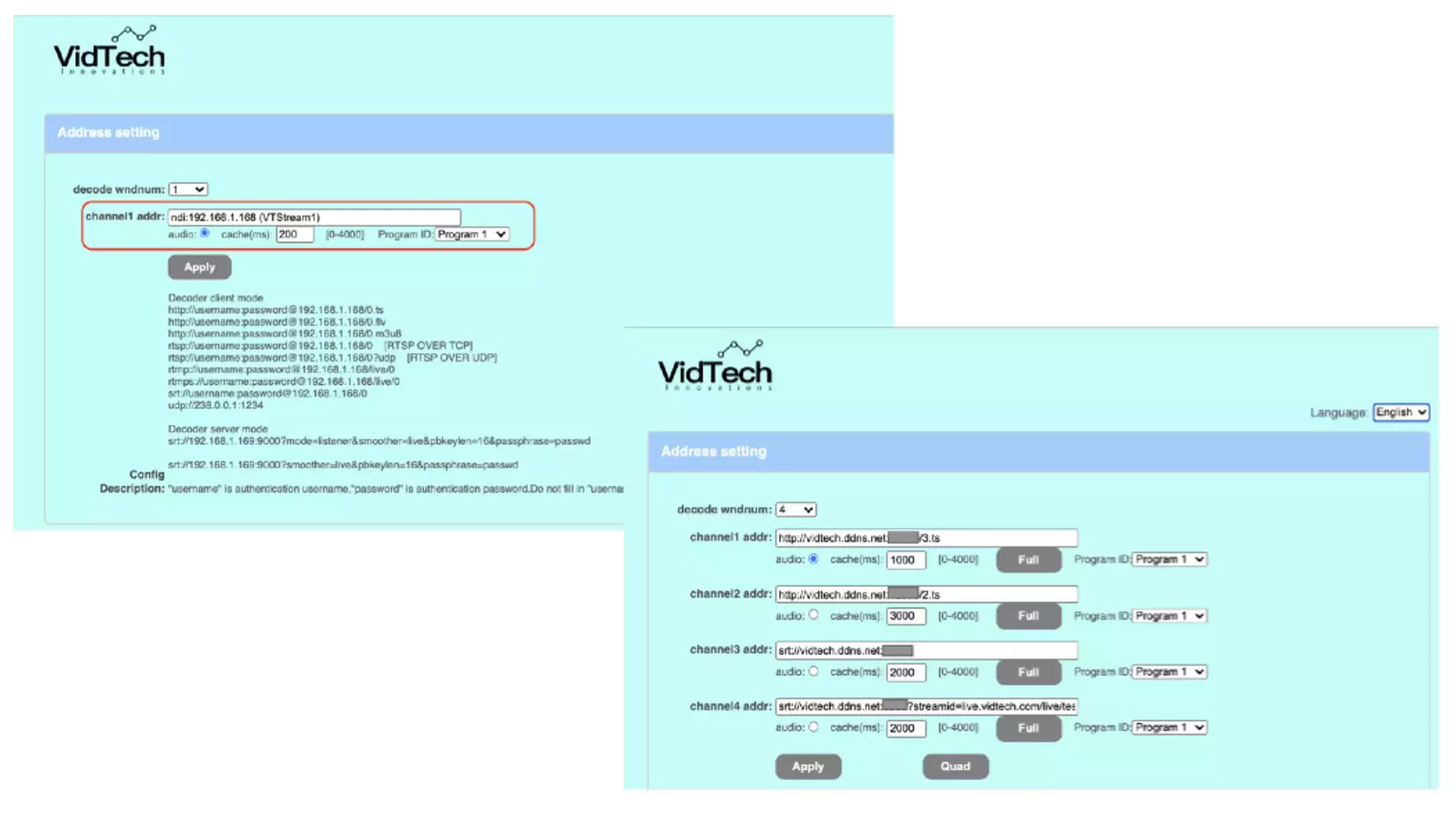

Simple GUI design

VidTech VTB-ND200PD GUI

High-Performance Decoding in Compact Form Factor

Support one to four outputs (quad split) in a wide range of video resolutions from SD to UHD. Applying and adjusting the settings is intuitively using the GUI over local network or remotely over internet with static IP address. The incoming stream and output status are monitored in real-time without losing track of its performance.

VidTech ND200PD now come with hardware option to decode NDI®|HX within a local network. Together with NE100P/PS, our clients avoid the hassle to lay long SDI cables connecting their cameras and servers.

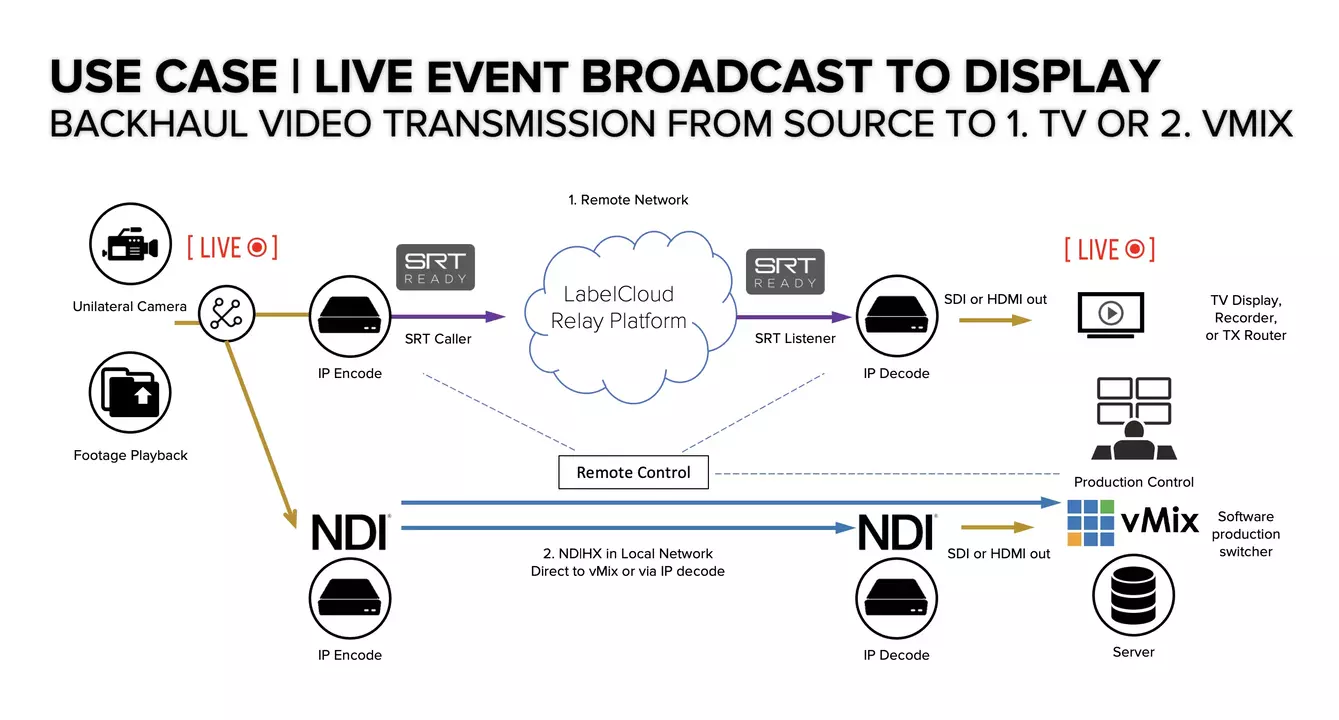

Label Broadcast NE-ND Sample Workflow

With our recommended workflow, we could consistently accomplish reliable low latency for live streaming across different regions or continents; our viewership size can be scalable accordingly.

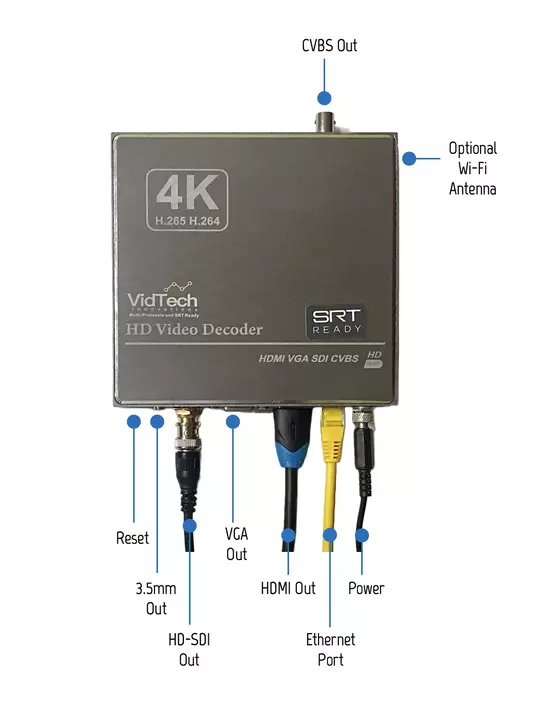

Connection Interface

Each device comes with HD-SDI, HDMI 2.0, CVBS, VGA outputs, Gigabit Ethernet port, 12V 2A DC power and 3.5mm audio output. Optional Wi-Fi receiver

Plug-And-Play installation

Setting up the device simply plugging in the power source, CAT-5 RJ45, and desire video cables. For audio monitoring, there is an additional 3.5mm output.
Headphone, video and network cables are sold separately.

VidTech VTB-ND200PD Interface

This model is specially designed for professionals who are on the move or broadcasters that require alternative solution for acquiring video feeds for transmission, remote production (REMI), live monitoring. It's small, light weight (450g) and cost efficient; it's a piece of remarkable engineering.

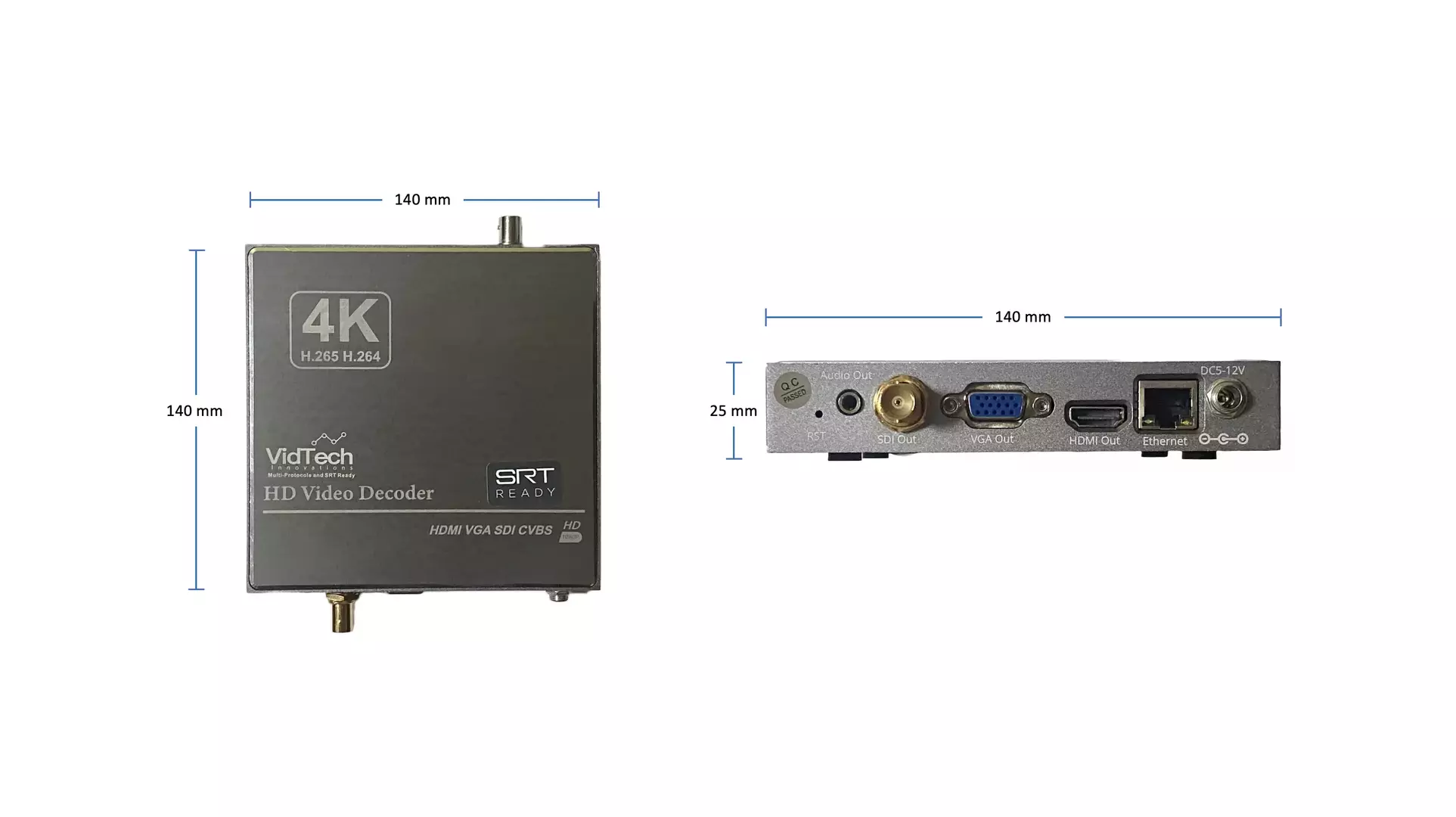

VidTech VTB-ND200PD Dimensions

Specifications : ND200PD

Standards

Video Decode







Audio Decode



Features

TS-IP: SRT / UDP / RTP / RTSP / HTTP / HLS / RTMP(S) / HTTP(S)
FLV / Optional NDI HX
Compression: H.265 main profile / H.264 (Baseline, Main, High profile) / / MJEPG/JPEG Baseline
Video Bitrates: 0.1 to 32 Mbps
FPS: 1 - 60 fps for 1080 and below
Resolution: Max support 3840 x 2160 progressive @ 30fps

Audio Format: AAC / AC3 / MP3 / MP2
Sample Rates: 8k / 11.25k / 22.5k / 44.1k / 48k Hz
Channels: Stereo Left/Right

Quad splits display on four IP streams decoding
Channel layout for text and graphic overlay as OSD output
Video output in Progressive, Interlace or same as input source
Adjustable: Brightness / Contrast / Hue / Saturation / Volume
HDMI color: RGB444 / YCbCr422 / YCbCr444
Build in video rotation in 90 / 180 / 270 degree
Sync with NTP Server

Connections

Input

Output




Ethernet
Wi-Fi

Input: 1x TS-IP

Video Output: SDI, HDMI 2.0 / CVBS (PAL / NTSC) / VGA
Audio Output: Embedded Stereo Left/Right @ 48kHz
                         3.5mm Analog Stereo Left/Right

1,000 Mbps,     RJ45
Optional - 2.4 GHz

Management System

Mac / Windows / iOS / Android

Web Base Management, HTML enabled browsers e.g. Safari / MS Edge / Google Chrome / Mozilla Firefox / Opera
Support ONVIF searching and video playback

Power Requirements

Adapter AC Input
Adapter DC Output
Consumption

100 - 240V @ 50/60Hz
12V 1A
5 Watt

Working Environment

Operating Temperature
Relative Humidity

-10 to 70 degree Celcius (14 to 158 degree Fahrenheit)
5% to 90% non-condensing

Physical Dimensions

Length x Breadth x Height
Weight

140 x 140 mm (170mm including BNC and CVBS outputs) x 25 mm
Approx 450g
