Amazingly VidTech Network Decoder | Transcoders are about the size of an adult's palm, so it is always easy to pack them for any job without worrying excess weight and space. Ideal to use them to display incoming feed on big screen for broadcast viewing. Furthermore, they are also perfect for repurposing of live content to social media platform.
Energy efficient System-on-Chip (S0C) chipset design which automatically compute the required hardware acceleration (such feature is normally not present in software decoder) result in faster video renditions.
Conform to industry compression standard using MPEG4/H.264 AVC and H.265 HEVC up to 2160p60 format. You will be pleased to get 4K quality video on a HD cost budget.

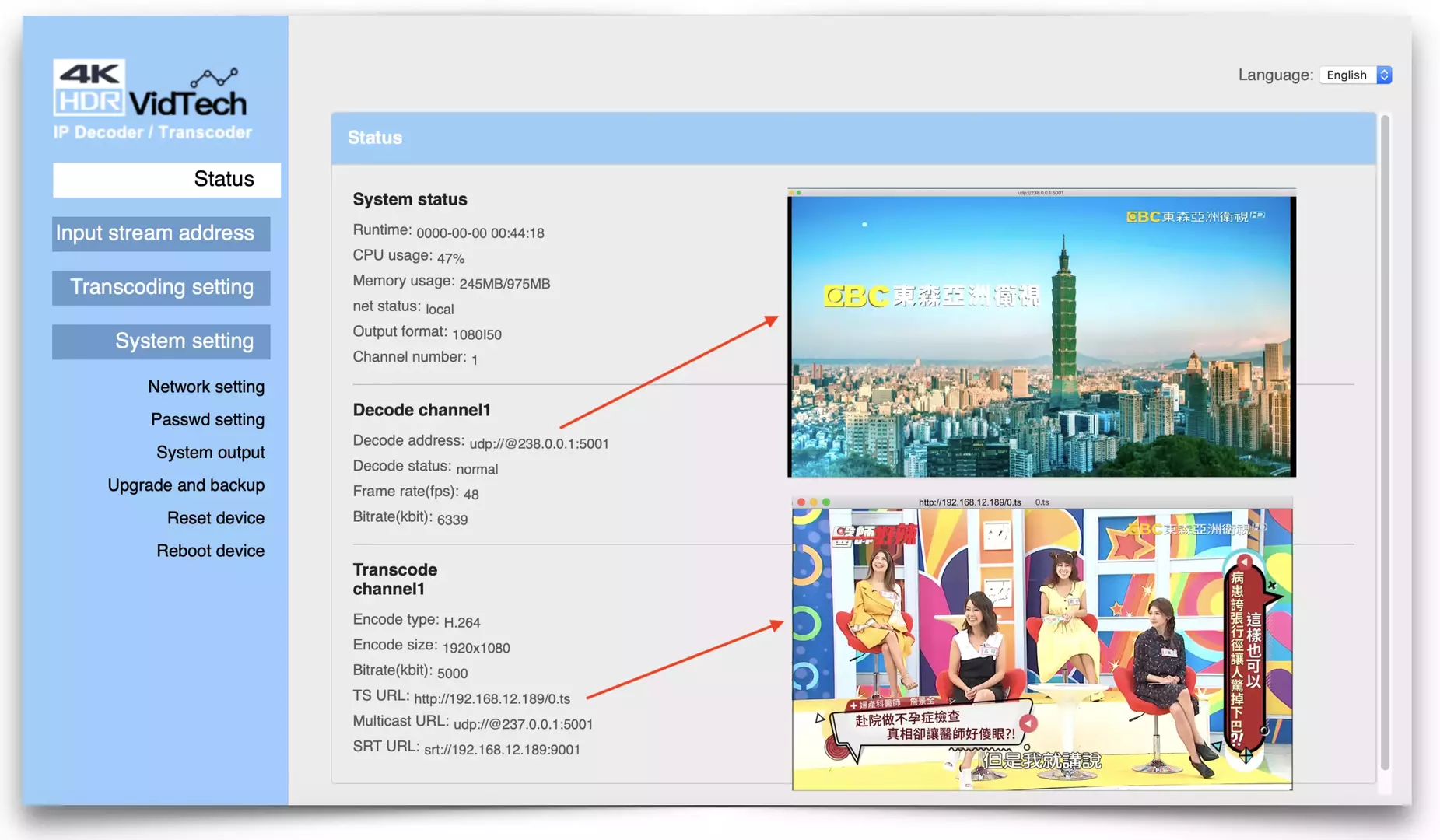

Simple Web User Interface (WebGUI) that support remote control management. A single master control operator can manage the decoder anywhere with internet access, result in better resource planning.
Label Broadcast is an official VidTech partner and a current member of SRT Alliance since 2021, we support Secure Reliable Transport (SRT) protocol in our VidTech standard workflow. This allows us to encrypt signal and ensure better packet recovery occurred in the internet video contribution process.

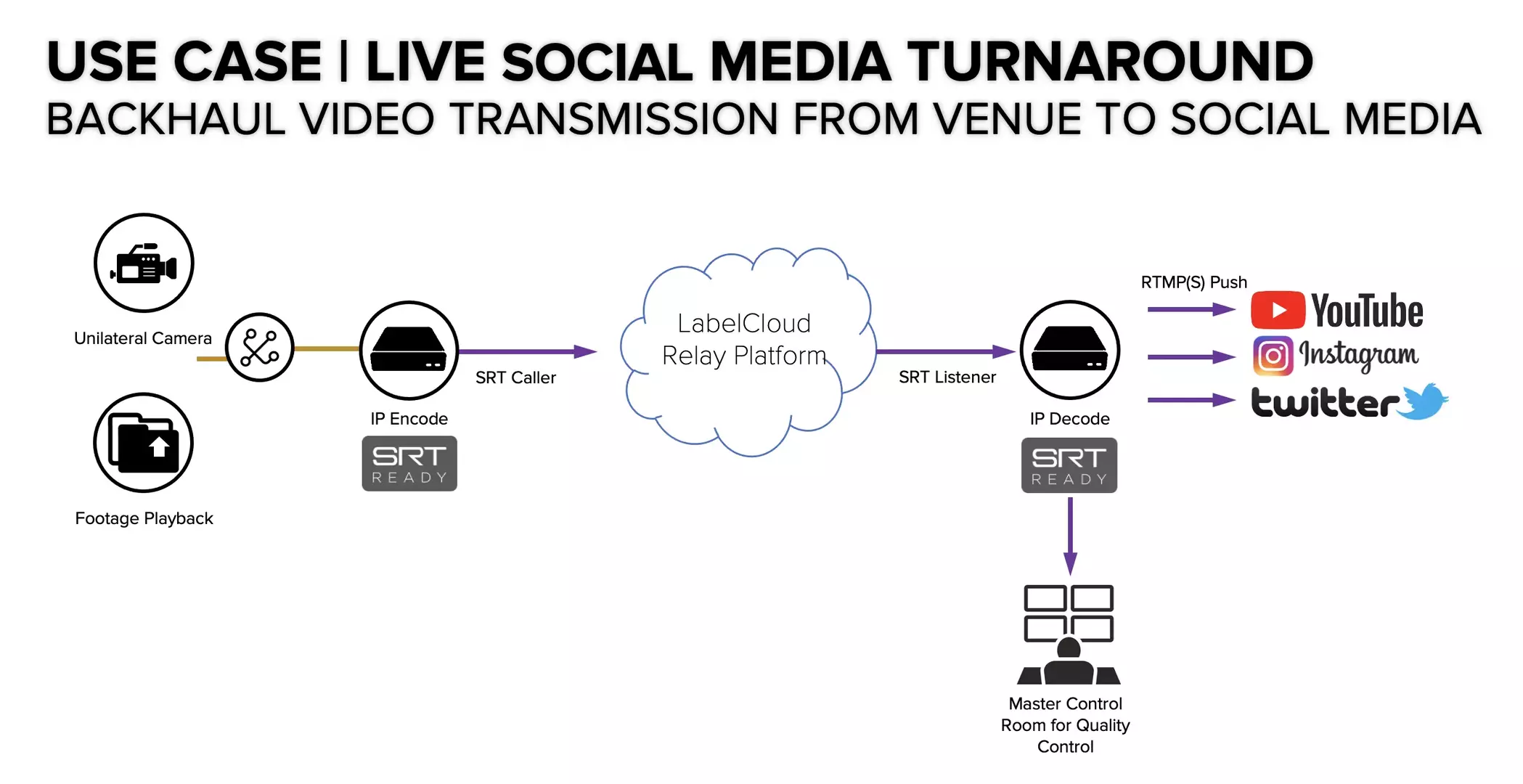

Bundle with our 4G/5G network bonding router and LabelCloud relay server, we could yield pristine quality in video transmission over the unmanaged internet for our esteemed clients.
Simple GUI design

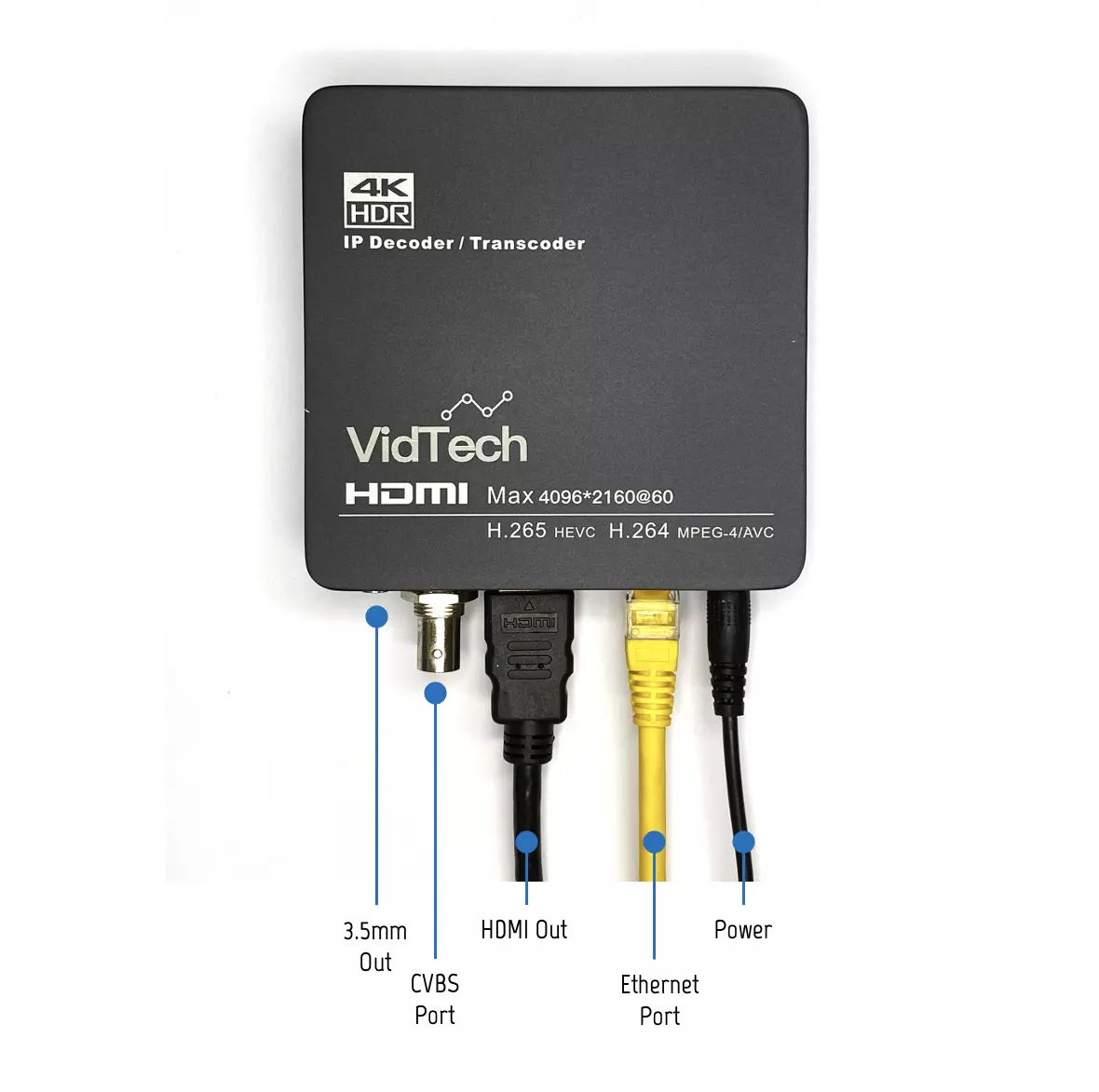

Each device comes together with HDMI 2.0 port, CVBS port, Gigabit Ethernet port, 12V 2A DC power and 3.5mm audio output.
Setting up the device simply plugging in the power source, CAT-5 RJ45, and HDMI cables. For audio monitoring, there is an additional 3.5mm output.
Headphone, HDMI, RJ45 cables are sold separately.
This model is specially designed for professionals who are on the move or broadcasters that require alternative solution for acquiring video feeds for remote production (REMI). It's small, light weight (240g) and cost efficient; it's a piece of remarkable engineering.
Standards
Video Decode
Audio Decode
Transcoding
TS-IP: SRT / UDP / RTP / RTSP / HTTP / HLS / RTMP(S) / HTTP-PTE / FLV
Compression: H.265 / H.264 / MPEG2 / MJEPG / AVS / AVS2
FPS: 1 - 60 fps
Resolution: Max support 4096 x 2160 progressive @ 60fps
Audio Format: AAC / AC3 / MP3 / PCM
TS-IP: SRT / UDP / RTP / RSTP / HTTP / HLS / RTMP(S)
Compression: H.265 HEVC Main Profile / H.264 AVC High/Main/Baseline Profiles
FPS: 5 - 60 fps
Key Frame intervals: 5 - 300
Bit Rate (kbps): 32 - 100,000
Resolution: Max 1920 x 1080 @ 60fps
Audio Format: ACC G711 @ 48kHz
Connections
Input
Output
Ethernet
Input: 1x TS-IP
Video Output: HDMI 2.0 / CVBS (PAL / NTSC)
Audio Output: HDMI Stereo Left/Right @ 48kHz
3.5mm Analog Stereo Left/Right
1,000 Mbps, RJ45
Management System
Mac / Windows / iOS / Android
Web Base Management, HTML enabled browsers e.g. Safari / MS Edge / Google Chrome / Mozilla Firefox / Opera
Support ONVIF searching and video playback
Power Requirements
Adapter AC Input
Adapter DC Output
Consumption
100 - 240V @ 50/60Hz
12V 2A
5 Watt
Working Environment
Operating Temperature
Relative Humidity
-10 to 70 degree Celcius (14 to 158 degree Fahrenheit)
5% to 90% non-condensing

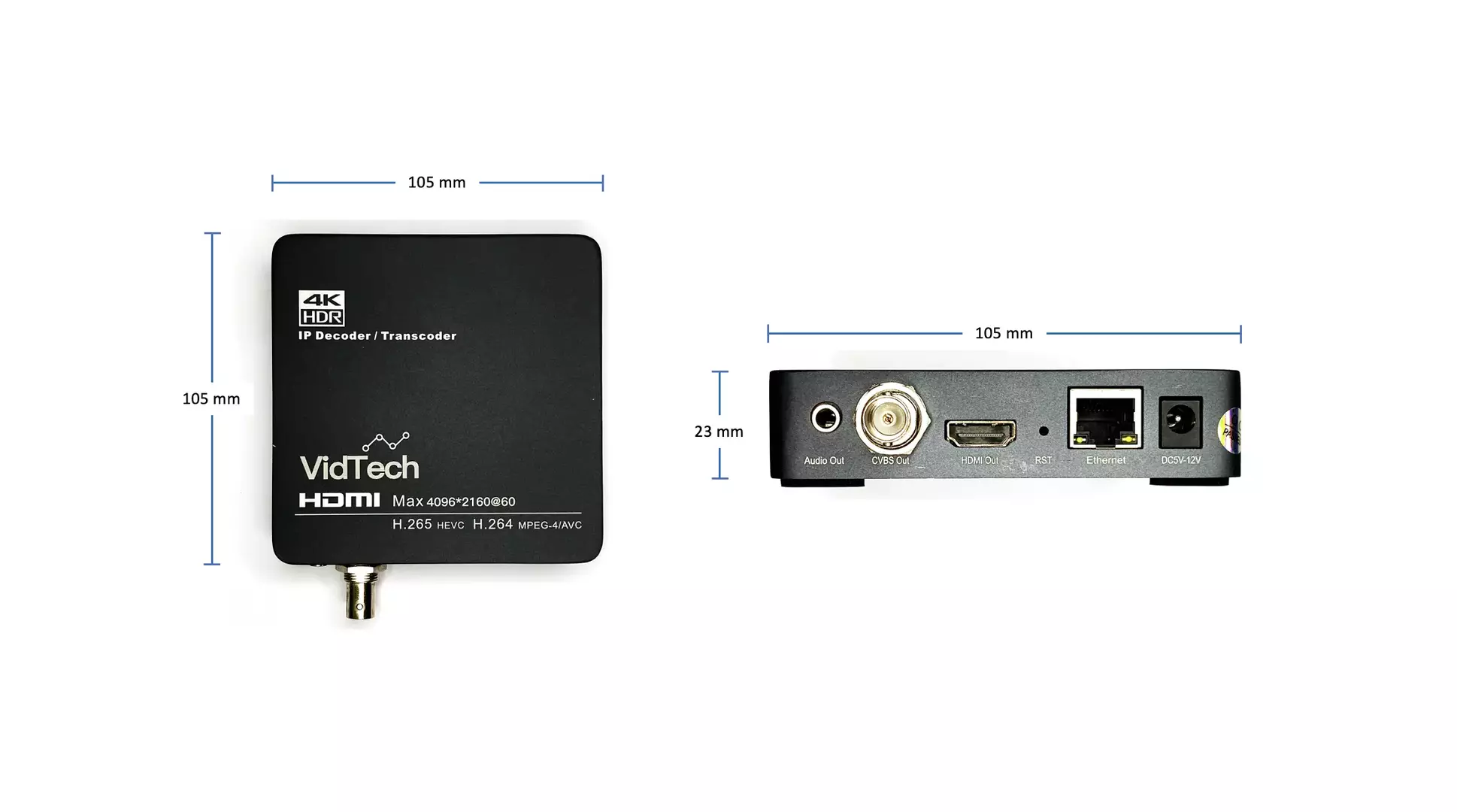

Physical Dimensions
Length x Breadth x Height
Weight
105 x 105 (125mm including BNC output) x 23 mm
Approx 240g
